Rated voltage:Uo/U 600/1000V
Test voltage:3500V

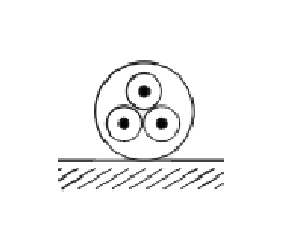

stationary :4 x cable diameterØ
flexible:12 x cable diameterØ
Temperature range:
flexible:-35°C - 120°C
stationary:-55°C - 145°C
Radiation resistance:≤80×4cJ/kg
Flame retardant:IEC 60332-1
特点：
耐紫外线
耐臭氧
耐磨
经久耐用
具有一定压力
| Part No. | No.cores Xcross-sec. mm² |
Outer Øca. mm |
Cop.weight kg / km |
Weight ca. kg / km |
|---|---|---|---|---|
| 620001 | 2x0.25 | 5.0 | 16.0 | 36.0 |
| 620002 | 3x0.25 | 5.5 | 21.0 | 44.0 |
| 620003 | 5x0.25 | 6.4 | 29.0 | 68.0 |
| 620004 | 7x0.25 | 7.5 | 37.0 | 95.0 |
| 620005 | 1x0.5 | 3.7 | 15.0 | 24.0 |
| 620006 | 2x0.5 | 6.0 | 29.0 | 55.0 |
| 620007 | 3x0.5 | 6.3 | 38.0 | 64.0 |
| 620008 | 4x0.5 | 6.9 | 45.0 | 78.0 |
| 620009 | 5x0.5 | 7.7 | 51.0 | 95.0 |
| 620010 | 6x0.5 | 8.1 | 66.0 | 106.0 |
| 620011 | 7x0.5 | 8.7 | 68.0 | 122.0 |
| 620012 | 8x0.5 | 9.4 | 80.0 | 138.0 |
| 620013 | 10x0.5 | 10.4 | 93.0 | 161.0 |
| 620014 | 12x0.5 | 10.4 | 107.0 | 170.0 |
| 620015 | 14x0.5 | 11.0 | 122.0 | 193.0 |
| 620016 | 16x0.5 | 11.7 | 129.0 | 216.0 |
| 620017 | 19x0.5 | 12.8 | 158.0 | 253.0 |
| 620018 | 21x0.5 | 13.5 | 167.0 | 281.0 |
| 620019 | 1x0.75 | 4.0 | 18.0 | 29.0 |
| 620020 | 2x0.75 | 6.7 | 38.0 | 71.0 |
| 620021 | 3x0.75 | 7.1 | 50.0 | 82.0 |
| 620022 | 4x0.75 | 7.7 | 58.0 | 100.0 |
| 620023 | 5x0.75 | 8.5 | 70.0 | 117.0 |
| 620024 | 6x0.75 | 9.1 | 85.0 | 135.0 |
| 620025 | 7x0.75 | 9.9 | 90.0 | 158.0 |
| 620026 | 8x0.75 | 10.6 | 110.0 | 178.0 |
| 620027 | 10x0.75 | 11.7 | 140.0 | 207.0 |
| 620028 | 12x0.75 | 11.7 | 148.0 | 220.0 |
| 620029 | 14x0.75 | 12.4 | 167.0 | 250.0 |
| 620030 | 16x0.75 | 13.2 | 183.0 | 282.0 |
| 620031 | 19x0.75 | 14.5 | 212.0 | 335.0 |
| 620032 | 21x0.75 | 15.3 | 230.0 | 370.0 |
| 620033 | 1x1.0 | 4.3 | 1.7 | 63.0 |
| 620034 | 2x1.0 | 7.2 | 31.0 | 78.0 |
| 620035 | 3x1.0 | 7.7 | 56.0 | 92.0 |
| 620036 | 4x1.0 | 8.3 | 66.0 | 112.0 |
| 620037 | 5x1.0 | 9.0 | 95.0 | 134.0 |
| 620038 | 6x1.0 | 10.0 | 105.0 | 164.0 |
| 620039 | 7x1.0 | 10.9 | 109.0 | 192.0 |
| 620040 | 8x1.0 | 11.6 | 130.0 | 219.0 |
| 620041 | 1.0Ox1.0 | 12.8 | 138.0 | 254.0 |
| 620042 | 1.02x1.0 | 12.8 | 164.0 | 270.0 |
| 620043 | 1.04x1.0 | 13.5 | 198.0 | 308.0 |
| 620044 | 1.06x1.0 | 14.3 | 203.0 | 350.0 |
| 620045 | 1.09x1.0 | 16.2 | 235.0 | 447.0 |
| 620046 | 21.Ox1.0 | 17.0 | 257.0 | 492.0 |
| 620047 | 1x1.5 | 4.8 | 22.0 | 42.0 |
| 620048 | 2x1.5 | 8.4 | 58.0 | 105.0 |
| 620049 | 3x1.5 | 8.9 | 71.0 | 121.0 |
| 620050 | 4x1.5 | 9.9 | 86.0 | 156.0 |
