Rated voltage:Uo/U 300/500V
Test voltage:2000V

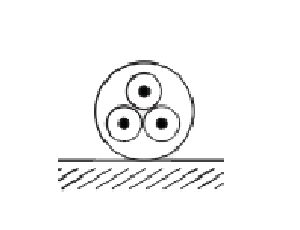

stationary :15 x cable diameterØ
flexible:-5°C - 70°C
stationary:-30°C - 80°C
Flame retardant:IEC 60332-1
| Part No. | No.cores Xcross-sec. mm² |
Outer Øca. mm |
Cop.weight kg / km |
Weight ca. kg / km |
|---|---|---|---|---|
| 703001 | 2x0.75 | 6.0 | 35.0 | 56 |
| 703002 | 3x0.75 | 6.3 | 46.0 | 70 |
| 703003 | 4x0.75 | 7.6 | 56.0 | 95 |
| 703004 | 5x0.75 | 7.6 | 70.0 | 130 |
| 703005 | 7x0.75 | 8.2 | 98.0 | 168 |
| 703006 | 12x0.75 | 10.8 | 148.0 | 232 |
| 703007 | 18x0.75 | 12.5 | 205.0 | 296 |
| 703008 | 24x0.75 | 15.0 | 250.0 | 418 |
| 703009 | 2x1.0 | 6.3 | 55.0 | 84 |
| 703010 | 3x1.0 | 6.8 | 70.0 | 110 |
| 703011 | 4x1.0 | 7.3 | 80.0 | 130 |
| 703012 | 5x1.0 | 8.0 | 95.0 | 156 |
| 703013 | 7x1.0 | 8.6 | 120 | 192 |
| 703014 | 12x1.0 | 11.4 | 185 | 265 |
| 703015 | 16x1.0 | 13.4 | 220.0 | 361 |
| 703016 | 18x1.0 | 14.0 | 245.0 | 380 |
| 703017 | 20x1.0 | 14.8 | 270.0 | 388 |
| 703018 | 24x1.0 | 16.2 | 345.0 | 451 |
| 703019 | 2x1.5 | 7.5 | 65.0 | 97 |
| 703020 | 3x1.5 | 7.9 | 90.0 | 125 |
| 703021 | 4x1.5 | 8.5 | 110.0 | 165 |
| 703022 | 5x1.5 | 9.3 | 125.0 | 193 |
| 703023 | 7x1.5 | 10.5 | 159.0 | 245 |
| 703024 | 12x1.5 | 13.7 | 245 | 365 |
| 703025 | 16x1.5 | 15.5 | 315 | 465 |
| 703026 | 18x1.5 | 16.3 | 345 | 553 |
| 703027 | 20x1.5 | 17.1 | 375 | 635 |
| 703028 | 24x1.5 | 19.5 | 448 | 705 |
